Dental adbone®BCP

Composition

Synthetic

25 % β-TCP + 75% HAp

Porosity

70%

Pore Size: 1 – 400 microns

Description

POROUS SYNTHETIC BONE BIOMATERIAL
adbone®BCP is a totally synthetic biphasic bone graft material made
of 75% of hydroxyapatite (HAp) and 25% of beta-tricalcium phosphate (β-TCP).
MULTIDIRECTIONAL INTERCONNECTED POROSITY
adbone®BCP features a multidirectional interconnected porosity that
guides the three-dimensional regeneration of bone. As the bone healing process occurs, adbone®BCP is resorbed and replaced by new bone. Due to its composition, adbone®BCP presents a biphasic resorption.
HIGHEST DEGREE OF POROSITY
adbone®BCP was designed to achieve the highest degree of porosity
without compromising the mechanical resistance.

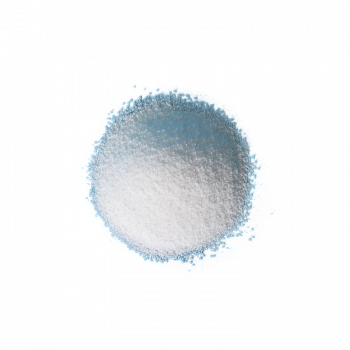

gra-1-5

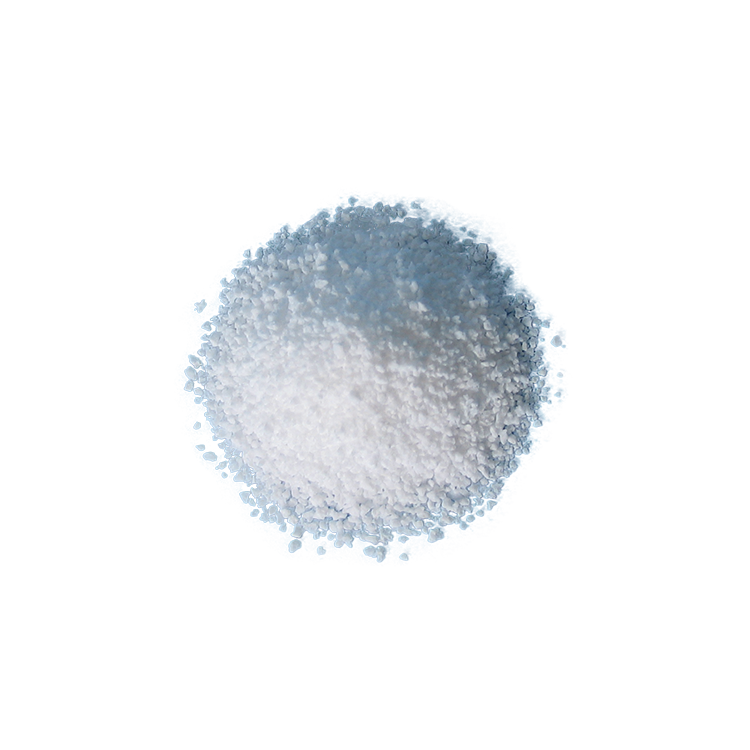

Granules

0.1 - 0.5 mm

Granules

0.5 - 1 mm

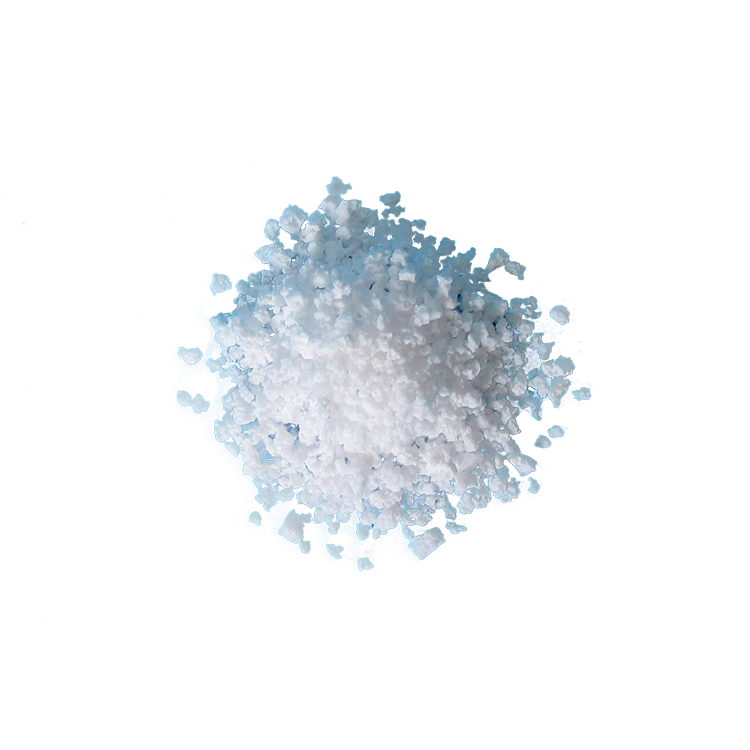

Granules

1 - 2 mm

Blocks
Cylinders

Composition

75%

Hydroxyapatite
75%

25%

Tricalcium Phosphate
20%

Porosity

70%

adbone
80%

45%

Others
45%

Pore Size

400μm

adbone
80%

50μm

Others
10%

Mechanical Resistance

3,0 MPa

adbone
80%

0,5 MPa

Others
20%
adbone®BCP has been designed to imitate natural bone.

Characteristics

Easy to handle
adbone®BCP can be easily mixed with patient’s blood. The hydrophilic behavior of adbone®BCP confers a high cohesivity of the particles
Totally synthetic
adbone®BCP does not contain animal or human tissues or derivatives
Vascularization
The interconnected porosity of adbone®BCP forms an ideal environment for vascularization
Radiopaque
adbone®BCP is radiopaque, allowing the monitorization of the graft osteointegration
No membrane
The use of membrane is not required unless there is risk of graft exposure

Granules

REFERENCES GEOMETRY RANGE SIZE QUANTITY
BCP010505G Granules 0.1 – 0.5 mm 0.5g x 1 Unit
BCP050105G 0.5 – 1 mm
BCP010505P Granules 0.1 – 0.5 mm 0.5g x 5 Unit
BCP050105P 0.5 – 1 mm
BCP010510G Granules 0.1 – 0.5 mm 1g x 1 Unit
BCP050110G 0.5 – 1 mm
BCP010210G 1 – 2 mm
BCP010510P Granules 0.1 – 0.5 mm 1g x 5 Unit
BCP050110P 0.5 – 1 mm
BCP010210P 1 – 2 mm
Other references and geometries are available upon request.

Blocks

REFERENCES GEOMETRY RANGE SIZE QUANTITY
BCP051015B Blocks 5 x 10 x 15 mm 1 Unit
BCP080820B 8 x 8 x 20 mm 1 Unit
BCP151520B 15 x 15 x 20 mm 1 Unit
Other references and geometries are available upon request.

Cylinders

REFERENCES GEOMETRY RANGE SIZE QUANTITY
BCP080820C Cylinder 8 x 8 x 20 mm 1 Unit
Other references and geometries are available upon request.

adbone®BCP is intendend to be used as a bone void filler or augmentation material for bone defects that are not intrinsic to the stability of the bony structure:

Hotspot image

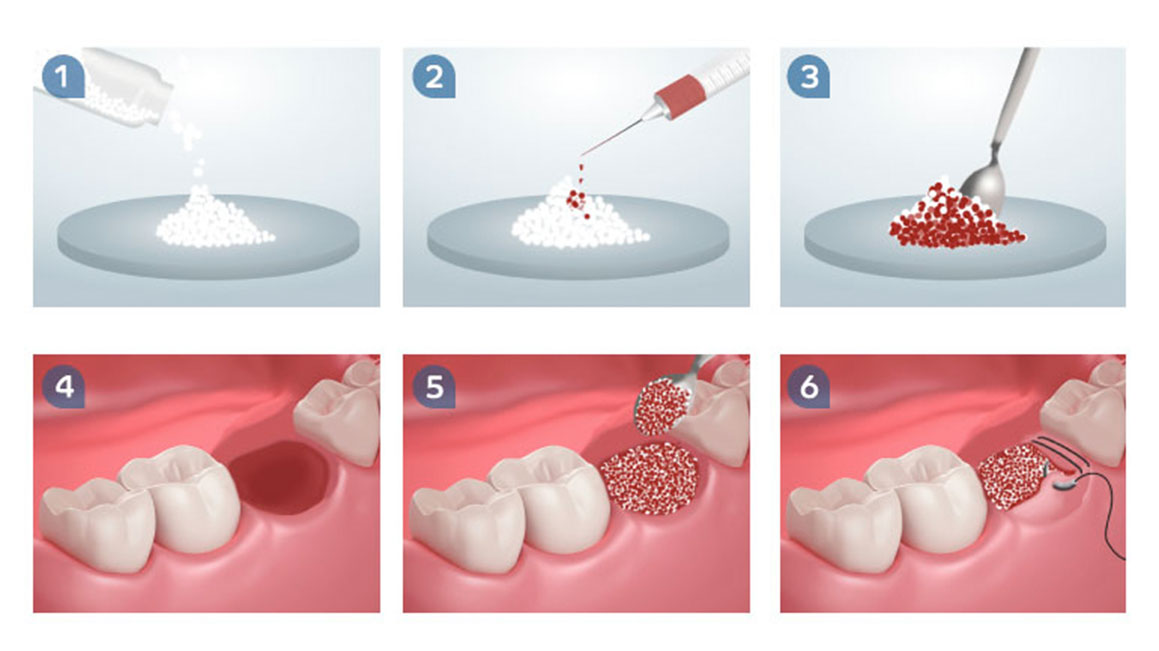

EASY HANDLING
